Reducing warping in thin-walled parts is like baking a cake that holds its shape—it requires the right ingredients and careful preparation. Warping can distort the part’s geometry, affecting its fit and function.
To reduce warping in thin-walled parts, materials like glass-filled plastics, low-shrinkage thermoplastics, and certain high-flow polymers work best. These materials offer dimensional stability and reduce the internal stresses that lead to warping.
Let’s explore these materials and how they address the challenges of warping in thin-walled parts.
Why do glass-filled plastics help reduce warping?
Glass-filled plastics are like adding steel reinforcements to a concrete structure—they provide stability and minimize deformation.
The addition of glass fibers significantly reduces shrinkage and improves dimensional stability in thin-walled parts. Glass-filled plastics distribute stress more evenly, minimizing localized shrinkage that can cause warping. For example, in automotive components or structural parts, glass-filled materials maintain their shape under thermal and mechanical loads, making them a reliable choice for reducing warping.
How do low-shrinkage thermoplastics minimize warping?
Low-shrinkage thermoplastics are like using a no-rise dough for baking—they’re less prone to expansion or contraction.
Thermoplastics like ABS, polycarbonate, and certain nylons have low shrinkage rates, which help maintain dimensional accuracy during cooling. These materials cool more uniformly, reducing the risk of internal stresses that lead to warping. They’re particularly effective in applications like consumer electronics or medical devices, where precision is critical.
Are high-flow polymers good for thin-walled parts?
High-flow polymers are like a well-oiled machine—they flow smoothly and evenly into every crevice.
Materials such as polypropylene and high-flow grades of polyamide are designed to fill molds quickly and consistently. Their excellent flow properties ensure even material distribution, reducing the risk of warping caused by uneven cooling or incomplete filling. High-flow polymers are ideal for intricate designs or thin-walled parts that require high precision.
How can material selection and design work together to reduce warping?
Choosing the right material is crucial, but pairing it with smart design makes all the difference in reducing warping.

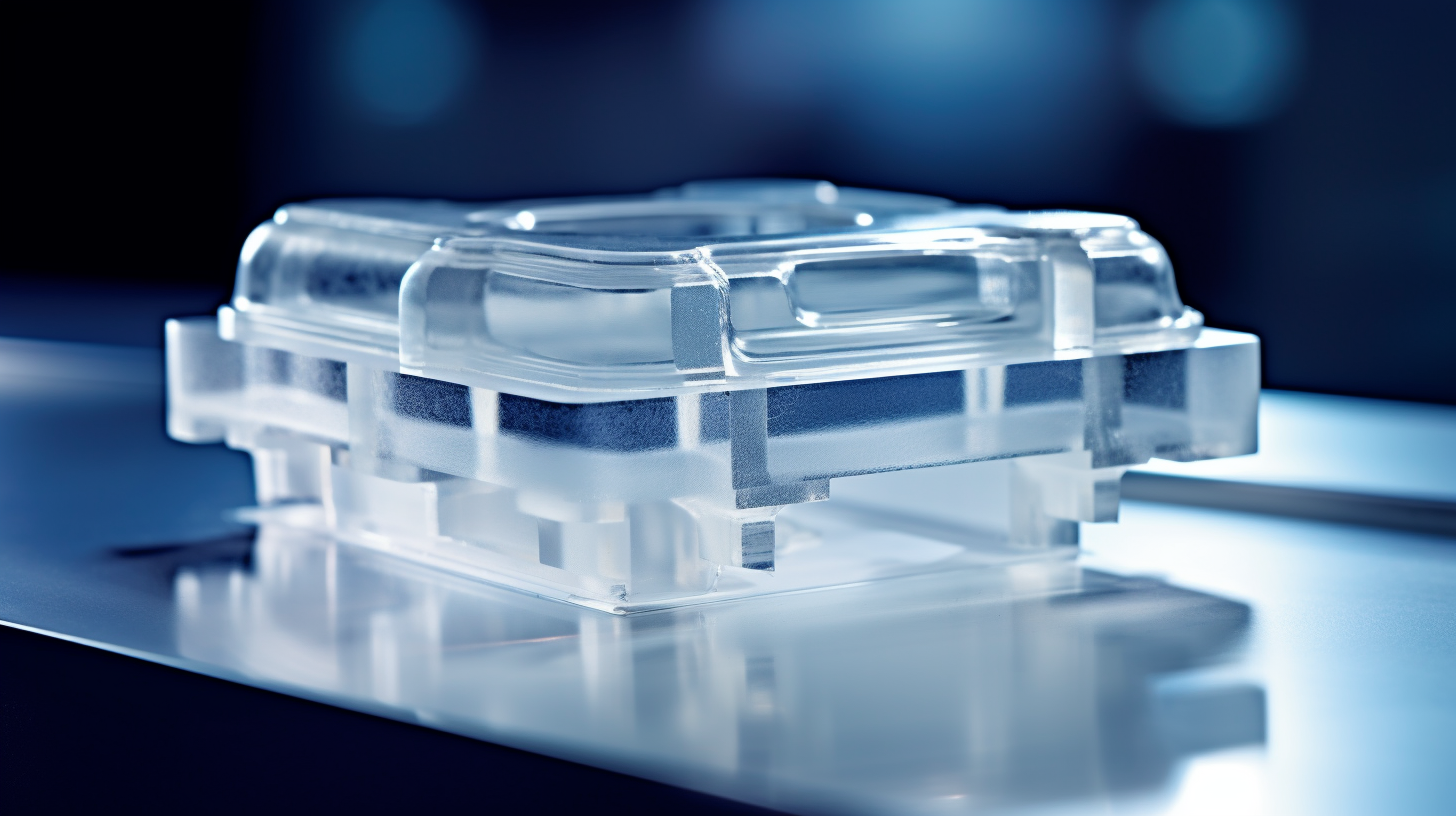

Materials like glass-filled nylon and polycarbonate offer excellent dimensional stability, while high-flow polypropylene ensures smooth filling for intricate molds. For instance, glass-filled nylon minimizes shrinkage, making it ideal for structural thin-walled parts, and polycarbonate reduces internal stresses in precision components.
Design adjustments, such as maintaining uniform wall thickness and avoiding abrupt thickness changes, further minimize cooling inconsistencies. Rounded edges and balanced mold filling help distribute stress evenly, ensuring thin-walled parts retain their shape and functionality.
Conclusion
Glass-filled plastics, low-shrinkage thermoplastics, and high-flow polymers, combined with thoughtful design choices, are the key to reducing warping in thin-walled parts. These strategies ensure dimensional accuracy and consistent performance in demanding applications.
For expert advice on material selection and design techniques, visit our resource center or contact us. Together, we can help you create thin-walled parts that are free from warping and built to last.
