Designing thin-wall injection-molded parts involves balancing strength, functionality, and manufacturability. Best practices for designing these parts include optimizing wall thickness, selecting the right material, improving mold design, and controlling processing parameters to ensure uniform flow and minimize defects. These strategies help create durable, high-quality parts while reducing cycle times and material costs.
Let’s explore these best practices for achieving successful thin-wall injection molding.
Why Is Wall Thickness So Important?

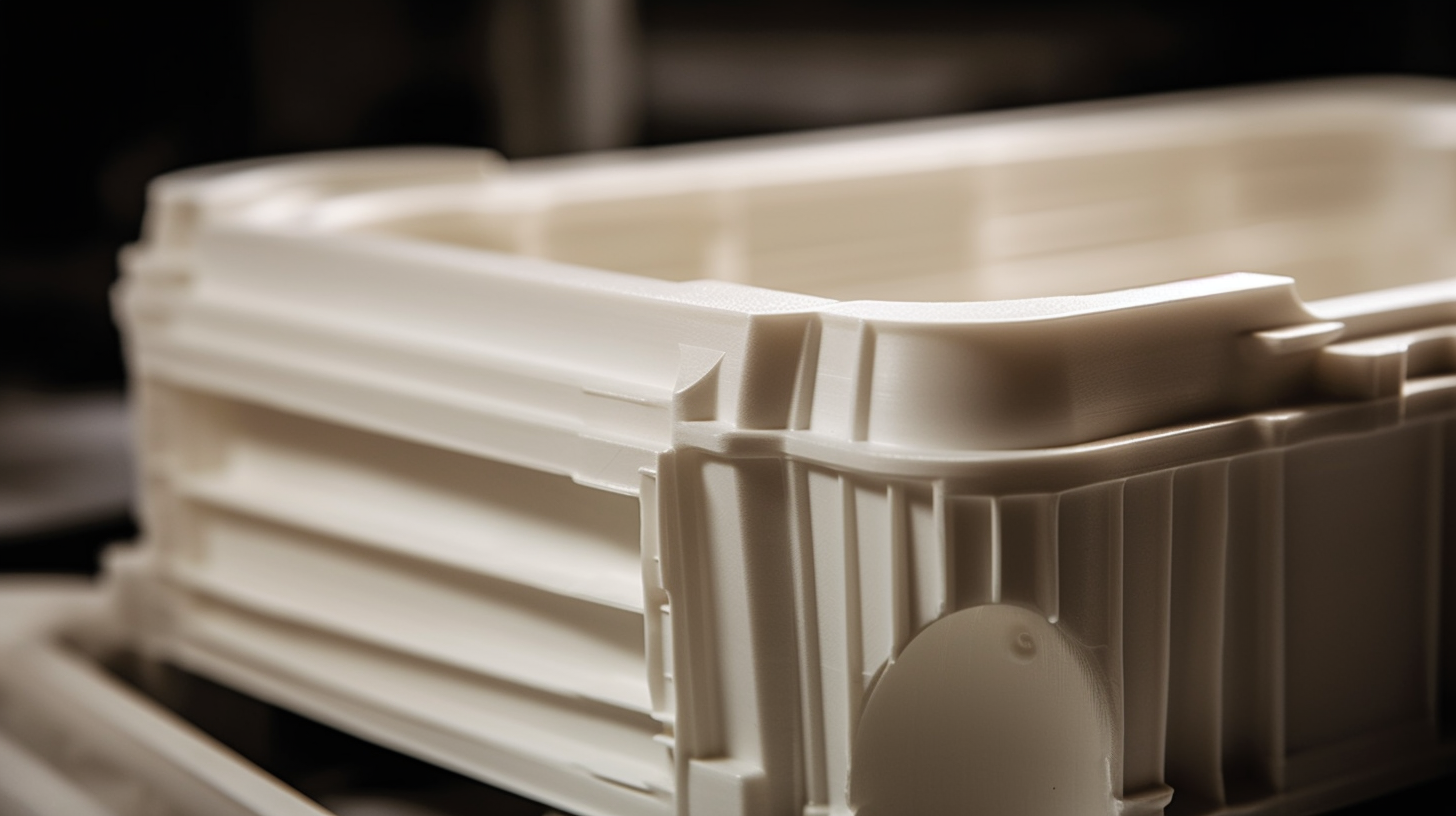

Wall thickness is the foundation of a successful thin-wall part design. Thin walls allow for faster cooling and reduced material usage, but they also need to be uniform to prevent defects such as warping or weak spots. For thin-wall injection molding1, aim to maintain consistent wall thickness throughout the part. Inconsistent wall thickness2 can cause uneven cooling, which leads to warping, sink marks, or incomplete filling.
The ideal wall thickness depends on the part’s material and its intended application. A good rule of thumb is to keep walls as thin as possible without compromising part strength. Materials such as polypropylene (PP), polystyrene (PS), and nylon are often used for thin-wall applications due to their flowability and low shrinkage.
How Do Material Properties Affect Thin-Wall Design?
Choosing the right material is essential for achieving optimal performance in thin-wall parts. Materials for thin-wall injection molding need to have good flow properties and low viscosity, allowing them to fill the mold quickly without defects. Common materials for thin-wall applications include:
- Polypropylene (PP): A lightweight, low-cost material with good flow characteristics.
- Polystyrene (PS): A low-viscosity material that’s ideal for fast and efficient molding.
- Acrylonitrile Butadiene Styrene (ABS): Offers strength and impact resistance, ideal for consumer products and automotive parts.
Material properties such as thermal conductivity3, shrinkage rate4, and strength should align with the design and intended function of the part to prevent defects like warping and sink marks.
How Does Mold Design Impact Thin-Wall Molding?
Mold design plays a crucial role in ensuring that thin-wall parts are produced successfully. To minimize defects, consider the following key aspects:
- Balanced Gate Placement5: Proper gate location ensures uniform filling, reducing the likelihood of air traps or flow lines.
- Conformal Cooling Channels6: These channels allow for even cooling and reduce cycle time, preventing uneven shrinkage.
- Gate Size and Location7: The gate should be large enough to fill the mold quickly but not so large that it causes material degradation.
Using simulation software, such as Moldflow, can help optimize mold design by predicting material flow and cooling behavior, allowing you to make adjustments before actual production.
Why Is Processing Parameter Control Essential?

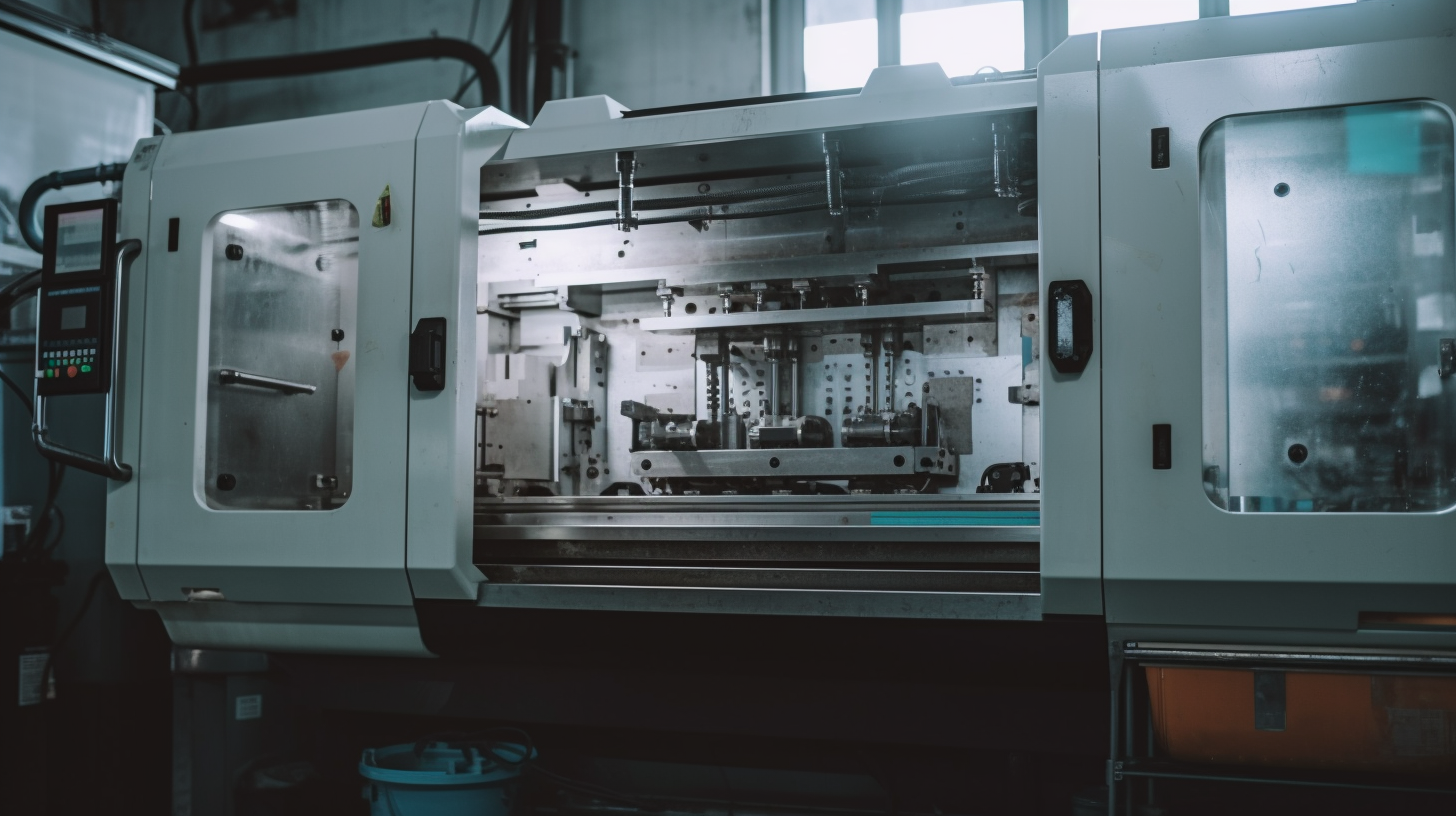

Control over injection molding parameters is critical for ensuring the successful production of thin-wall parts. Key parameters include:
- Injection Speed: High injection speed8s are required to fill thin-walled molds quickly and prevent short shots or incomplete filling.
- Injection Pressure: Optimal pressure ensures that the material is injected fully and evenly into the mold cavity, preventing air traps and voids.
- Cooling Time: Shortening cooling time9 while ensuring even cooling is essential for improving cycle times and preventing warping.
Carefully monitoring these parameters ensures the part is filled uniformly and reduces the chances of defects.
Best Practices for Thin-Wall Injection Molding
| Best Practice | Benefits | Considerations |
|---|---|---|
| Maintain Uniform Wall Thickness | Reduces warping and improves part strength | Avoid thick and thin sections within the same part |
| Choose the Right Material | Ensures good flow and minimizes defects | Select materials with low viscosity |
| Optimize Mold Design | Improves material flow and cooling | Use balanced gate placement and conformal cooling |
| Control Injection Parameters | Ensures uniform filling and reduced cycle time | Adjust speed, pressure, and cooling time |
Conclusion
To design successful thin-wall injection-molded parts, focus on wall thickness optimization, material selection, mold design, and precise control over processing parameters. These practices ensure the creation of durable, high-quality parts that are efficient to manufacture. With the right combination of materials and design considerations, you can produce strong, reliable parts while minimizing material use and production costs.
